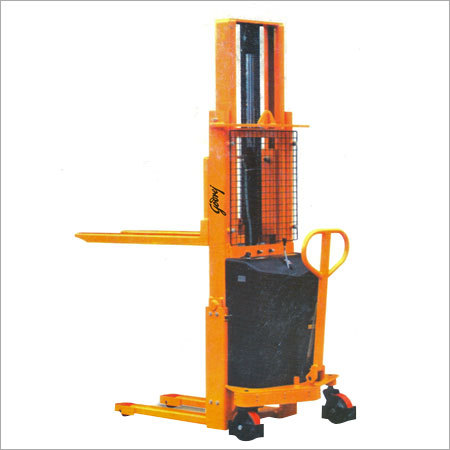

Semi Electric Stacker

Semi Electric Stacker
Semi Electric Stacker
Product Code : MS 1024 / 1033
Product Description

We have marked a distinct position in the market by providing Semi Electric Stacker that is sourced from the world's renowned manufacturer, Godrej. This is manufactured using supreme class components in compliance with the set industry norms. The entire range of Semi Electric Stacker is known for optimum performance, high capacity, smooth handling, reliability and longer service life. It is offered in different capacities at the most reasonable prices as per the needs of the clients.



Specifications

  • Top quality mast construction
  • Light and easy manual steering system
  • Safety guard on steering wheel
  • Lift Capacity : 1000kg
  • Lift Height : 2450mm for MS1024 and 3300mm for MS1033
  • Hand Brake for Safety : Hand operated brake ensures that Stacker is in stationery position while lifting / lowering the load.
  • Special Features
  • Rigid and strong duplex mast structure
  • Compact design with strong steel construction
  • Robust step less raising and lowering of forks incorporating an impressive number of safety features in a rugged, user friendly design.
  • Suitable for storage and turnover of small items and spare parts

Technical Specifications

Model


MS 1024

MS 1033

Load Capacity

kg

1000

1000

Derated Capacity of MFH

kg

1000

700

Load Center

mm

600

600

Fork Length

mm

1150

1150

Fork Width

mm

160

160

Outside Fork Spread

mm

540

540

Inside Fork Spread

mm

380

380

Maximum Fork Height (MFH)

mm

2450

3300

Minimum Fork Height

mm

90

90

Ground Clearance

mm

30

30

Overall Height Lowered

mm

1800

2225

Overall Height Raised

mm

2980

3830

Overall Length

mm

1820

1820

Overall Width

mm

800

1010

Lifting speed, with load

mm/s

72

72

Lifting speed, without load

mm/s

110

110

Pump Motor

W

800

800

Battery

Ah/V

135 / 12

135 /12

Battery Charger

A/V

15 / 12

15 / 12

Load Wheel (Diameter X Width)

mm

82 X 80

82 X 80

Steering Wheel (Diameter X Width)

mm

180 X 50

180 X 50

Load Wheel Type


Single / Polyurethane

Single / Polyurethane

Drive Wheel Type


Single / Polyurethane

Single / Polyurethane

Net Weight

kg

450

550

Color


Yellow

Yellow
