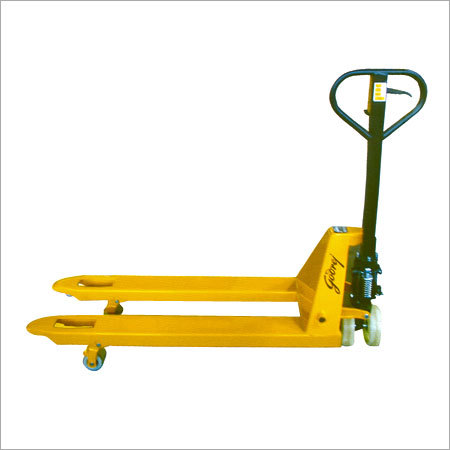

Industrial Hand Pallet Trucks

 Industrial Hand Pallet Trucks
Industrial Hand Pallet Trucks
Product Code : GPT-2500 H
Product Description

We are instrumental in offering a high quality range of Hand Pallet Trucks that is procured from our reliable vendor, Godrej. These trucks are designed and developed using high grade components and cutting edge technology under the guidance of a skilled team of professionals. The entire range of Hand Pallet Trucks is treasured for easy handling, less maintenance, robust construction, dependability and enhanced service life. These trucks are offered in different specifications to meet the varied needs of the clients.



2500 Kg Lifting Capacity
Now your Pallet Trucks can easily handle heavier pallets, reducing the number of trips for material movement. With a high lift height of 200mm, a wide range of pallets can be handled.

Heavy Duty Hydraulic Unit
Hydraulic Pump being a critical part of a Pallet Truck, needs to withstand thousands of Lift/Lower cycles. This unitin GPT-2500H is easy and inexpensive to maintain, with genuine spare parts that are easily available.

High Tensile Steel Forks
The 'Double U', high tensile steel frame gives extra strength to the forks at key stress areas. It also ensures lesser wear of forks while handling pallets.

Three Position Control Lever for Easy Operation
An easy to operate Three Position Lever, with Lower, Lift and Neutral positions increases productivity. In the Neutral Position the handle is disconnected from the Pump Unit, reducing the effort required in moving the load and reducing operator fatigue. Spring loaded handle ensures that handle comes back to vertical position when released.

Nylon Steering and Castor wheels for Easy Movement
Single nylon wheels ensures easy manoeuverability in narrow aisles. These wheels are specially suited for movement over wet surfaces.

Features
  • Affordable price
  • Excellent Manoeuverability
  • Ease of Handling
Technical Specifications

Model


GPT 2500 H

Load Capacity

Kg

2500

Fork Length (L2)

mm

1100

Fork width (B1)

mm

160

Outside Fork Spread (B)

mm

545

Inside Fork Spread (B2)

mm

225

Maximum Fork Height (H2)

mm

200

Lift (H3)

mm

117

Lowered Fork Height (H1)

mm

83

Head Length (L1)

mm

400

Overall Length (L)

mm

1560

Overall Height (H)

mm

1220

Truck Weight

Kg

75

Load Wheels (Diameter X Width)

mm

80 x 94

Steering Wheels (Diameter X Width)

mm

180 x 50

Load Wheel Type

-

Single, Nylon

Drive Wheel Type

-

Nylon

Colour

-

Yellow
